The EcoBlue Digital Biological Microscopes have equal functions compared to stand-alone microscopes. But since these microscopes have an integrated camera, these are offering a compact solution for viewing microscopy images without having to add an external camera to the microscope
The included software allows the user to view live images on the computer screen or beamer. The software also enables the user to capture images, record videos and perform measurements
The EcoBlue Digital Biological Microscopes equipped with WF10x/18mm eyepieces, quadruple nosepiece, achromatic objectives, 123 x 119 mm stage with two clamps, Abbe condenser and a 1 W LED illumination

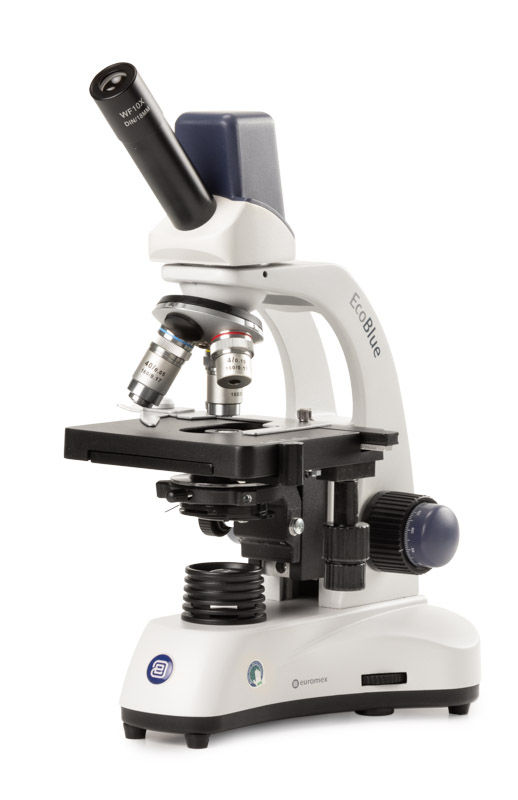

EcoBlue Digital Biological Microscope
Technical Specification
EcoBlue Digital Biological Microscope with achromatic 4/10/S40 objectives, with options for 60x or 100x objectives plain stage with clamps or mechanical XY stage and 5 MP digital CMOS camera. With 1 W Dual colour NeoLED illumination. Cordless use with 3 rechargeable AA batteries and external 5 Vdc USB-C 100-240 Vac multiplug power adapter.
Secured DIN WF 10x/18 mm eyepiece Monocular or Binocular head, 30° inclined, 360° rotatable Built-in 5 MP CMOS camera with USB-2 interface, 2048 x 1635 pixels Supplied with ImageFocus Plus software Forwarded quadruple revolving nosepiece on ball-bearings Achromatic 4x, 10x, S40x objectives All optics are anti-fungus treated and anti-reflection coated for maximum light throughput Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment Plain 123 x 119 mm stage with 2 object clamps Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder 1 W Dual colour (white and warm halogen colour LED) NeoLED(tm) illumination with external 5 Vdc USB-C and multiplug 100-240 V power adapter (CE) (50/60 Hz) Paint with Antibacterial Protection Layer Supplied with power cord and dust cover in styrofoam case
