Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. We offer a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes
The iScope Polarising Microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos identification.
iScope Polarising Microscope models are supplied with EWF 10x/22 mm or EWF 10x/20 mm (Ø 30 mm tubus) eyepieces, one eyepiece with crosshairs and one eyepiece with crosshairs and micrometer. Specific models for identifying asbestos have an HWF 12.5x/15 mm (Ø 30 mm tubes) eyepiece and an HWF 12.5x/15 mm eyepiece with Walton-Beckett scale
Plan PLPOLi strain free infinity corrected objectives for polarization applications. Objectives 5x without cover glass correction and 10/20/S40/S60/S100x oil with 0.17mm cover glass correction. For transmitted polarization models
Plan PLPOLRi strain free infinity corrected objectives for polarization applications. No cover glass correction. For models with reflected illumination

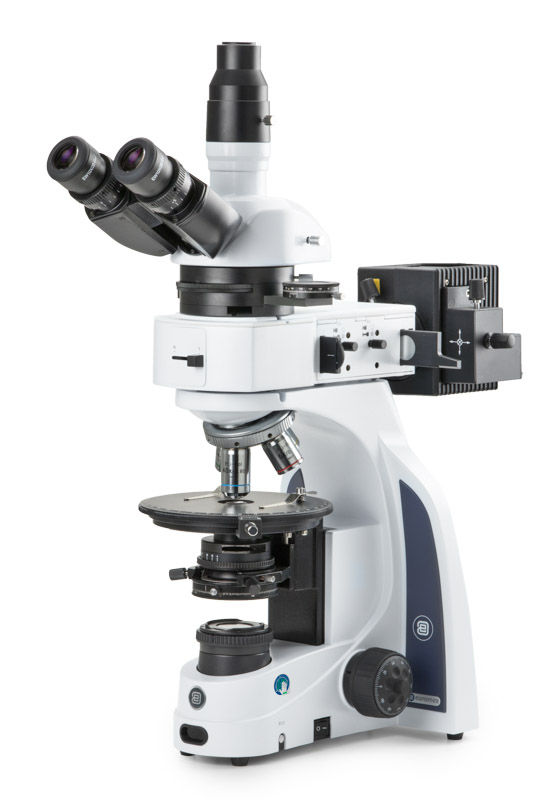

iScope Polarising Microscope
Technical Specification
iScope Polarising Microscope with binocular or trinocular head options, EWF 10x/20 mm eyepieces or 22mm, plan polarization PLPOLi 5/10/20/S50x IOS objectives cover slip corrected or PLPOLRi non cover slip corrected objective , 160 mm round stage. Rotatable 60° polarizer and slider with analyzer. Bertrand lens. 3 W NeoLEDTM brightfield Köhler illumination and reflected attachment with 50 W halogen epi-illumination
Pair of EWF 10x/20 mm eyepieces, One EWF 10x/20 mm eyepiece with crosshair and one with crosshair and micrometer
Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with diopter adjustment on both eyepiecesRevolving quadruple reversed nosepiece on ball bearings
Strain free Plan PLPOLi 5x/0.12, 10x/0.25, 20x/0,40 and S50x/0.65 IOS objectives for polarization
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput 360° rotating Ø 160 mm graduated stage with 2 clamps
Height adjustable condenser with 360° rotatable graduated polarizer
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotation. Total travel approximately 24 mm
Rack-stop for protection of slides and objectives. Friction adjustment
Diascopic intensity adjustable 3 W NeoLEDTM Köhler illumination with Internal 100-240 V power supply (CE)
Polarization attachment with 50W 12V halogen epi-illumination, 360° rotatable polarizer filter, analyzer, Bertrand lens, quartz wedge, 1L first red and L/4 retardation plates, sliders with green-blue filters and white-polarizer filters
iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy
CSS - Cable Storage System at the back
Paint with Antibacterial Protection Layer
Supplied with power cord, 500 mA 250 V spare fuse and dust cover
