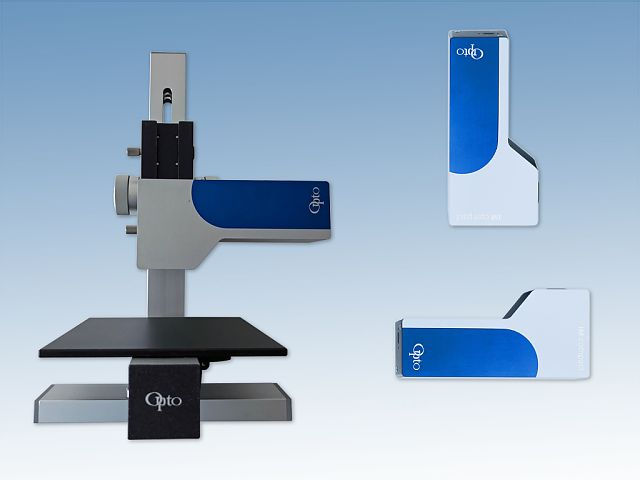

Opto Imaging Solutions IM-compact is a digital microscope for metallography or biology
The new IM·compact M has a camera, optics and illumination, all in one sensor.
These modules offer the user excellent ease of use. They can be easily and quickly integrated into many measurement setups, analytical instruments or life science systems.
The clear plus points here:
- pre-calibrated sensors with micrometer resolution
- apo corrected SLWD microscope optics in a compact aluminum housing
- sample-optimized illumination selection of the integrated coax and ring light illumination
- standard interfaces (USB 3.1or GigE) with 5MP camera (Sony IMX sensors)
- free software package for sensor control, image acquisition and simple measurement and documentation tasks
IM·compact M as a control and measuring tool in production
IM·compact M as a documentation tool and discussion platform for quality assurance in manufacturing.
Here during the evaluation of the cutting edges of a milling tool. The robust aluminum housing is ideally suited for use in harsh environments.
Due to its compact design, the IM·compact M digital microscope can be quickly set up at a wide variety of workstations. With the available transport case, a completely mobile inspection setup is ready for use at any time.
IM·compact M as IoT sensor next to every milling and turning machine
The Machine Vision Microscope (MVM) is a compact Plug & Play Imaging Module for the following applications:
- hardness testing
- bond inspektion, SMD inspection
- solar panel analysis
- measurement and documentation tasks
- surface analysis
- rheology and measurement of crystal structures
- automation of laboratory tasks
IM·compact M as a miniaturized microscope
Compared to a standard microscope, the difference in size becomes clear.
When displayed on a monitor, i.e. a camera image, there is no difference in quality.
A IM·compact M may only have a fixed magnification, but the fixed optical parameters guarantee a much higher reproduction of image quality and repeatability of their measurements.
In addition, two Imaging Modules are readily available for the budget of a large standard microscope - these in turn are optimized for their corresponding inspection task.
Opto Imaging Solutions IM-compact
Technical Specification
IM•compact M as a digital microscope for metallography or biology
The new IM-compact M is a digital Machine Vision Microscope (MVM) - camera, optics and illumination, all in one sensor.
These modules offer the user excellent ease of use. They can be easily and quickly integrated into many measurement set-ups, analytical instruments or life science systems.
The clear plus points here are
- pre-calibrated sensors with micrometer resolution
- Apo-corrected SLWD microscope optics in a compact aluminium housing
- sample-optimised illumination selection of the integrated coaxial and ring light illumination
- Standard interfaces (USB 3.1or GigE) with 5MP camera (IMX sensors)
- free software package for sensor control, image acquisition and simple
measurement and documentation tasks.
IM•compact M as a control and measuring tool in production
IM-compact M as a documentation tool and discussion platform for quality assurance in manufacturing.
Here, evaluating the cutting edges of a milling tool. The robust aluminium housing is ideally suited for use in harsh environments.
Due to its compact design, the IM•compact M digital microscope can be quickly set up at a wide variety of workplaces. With the available transport case, a completely mobile inspection setup is ready for use at any time.
